High Quality 17 VATC BC 75 Ohm CATV coaxial Cable system copper cable telecommunication cable

Name: High Quality 17 VATC BC 75 Ohm CATV coaxial Cable system copper cable telecommunication cable
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : VATC Cable

Certification : UL, ETL, CE, RoHS

Place of Origin : China

MOQ : 30 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : Normally 15 working days

Packaging Details : 500M, 1000M, Wooden Drum, Pallet

Inner Conductor : 0.051"/1.13mm/16AWG BC

Dielectric : 0.180"/4.8mm Foamed PE

Shield 1 : 0.20"/4.95mm Bonded Aluminum PET

Shield 2 : Aluminum braid wire 55% coverage

Jacket : 0.268"±0.006"/6.81±0.15mm PVC

Jacket Thickness : 0.030"/0.76mm

Contact Now

17 VATC BC 75 Ohm CATV coaxial Cable NO.7100421



Construction Parameters:
Inner Conductor	0.051"/1.13mm/16AWG BC
Dielectric	0.180"/4.8mm Foamed PE
Shield 1	0.20"/4.95mm Bonded Aluminum PET
Shield 2	Aluminum braid wire 55% coverage
Jacket	0.268"±0.006"/6.81±0.15mm PVC
Jacket Thickness	0.030"/0.76mm
Application	For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 17.2 Ω/km 5.25Ω/1000ft

Capacitance	52 ±3 pF/m 15.9 ±0.9 pF/ft
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃
Cable diamensions	0.268"±0.006"/6.81±0.15mm PVC

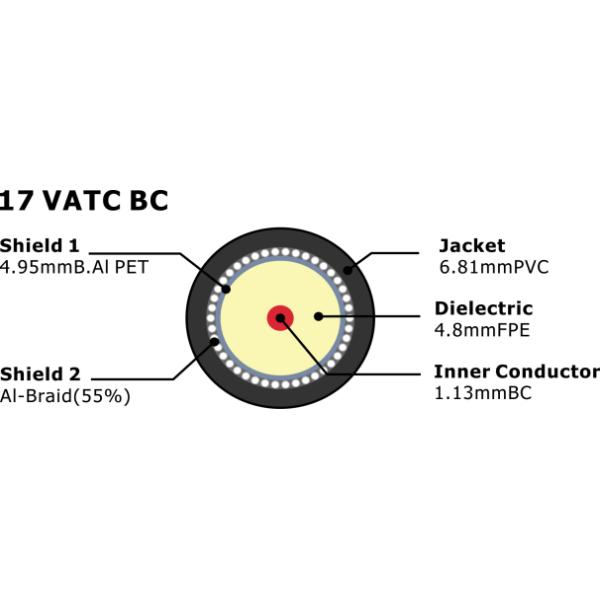

Cross Section














Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
50	1.13	3.70
100	1.68	5.50
200	2.47	8.10
400	3.57	11.70
800	5.18	17.00
950	5.70	18.70
1350	6.95	22.80
1750	8.05	26.40
2150	9.09	29.80
3000	11.04	36.20

Order Informations:
Marking	HELLOSIGNAL 17 VATC BC CATV COAXIAL CABLE 7100421 ×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM
